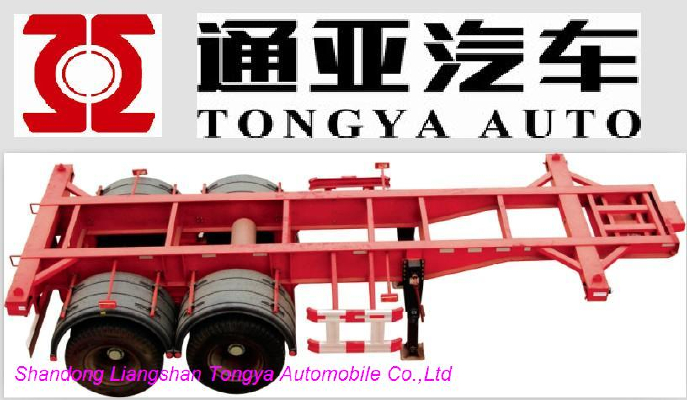

Dimension

7160mm*2490*1557(two axles) 20FT

Loading Capacity (T)

≤ 30 T(20FT)

Axle

13 T, FUWA /BPW /Huajing Brand

Rim

9.00-22.5

Tire

12.00R22.5

Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW brand )

Spring leaf

90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12

King pin

JOST brand 2.0 or 3.5inch bolts type or Welding type

Support leg

JOST brand D200T or China brand 28Tons (Double speed)

Main beam

Height: 500mm, upper plate is 14mm, middle plate is 8mm,

down plate is 16mm ; Material is Q345B Steel .

Brake chamber

WABCO RE 6 relay valve; T30/30 T30 Spring brake chamber（TKL brand）; Two pieces of 45L air tanks

ABS

Optional

Twist Locks

Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)

Valve

WABCO valve

Light

LED light

Voltage

24V

Receptacle

7 ways (7 wire harness)

Tool box

One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Shipping Terms:

By bulk cargo carrier, RORO or 40HQ container.
