- Place of Origin: SHANDONG, CHINA
- Brand Name: TONGYA AUTO
- Model Number: CSTY9380TDP

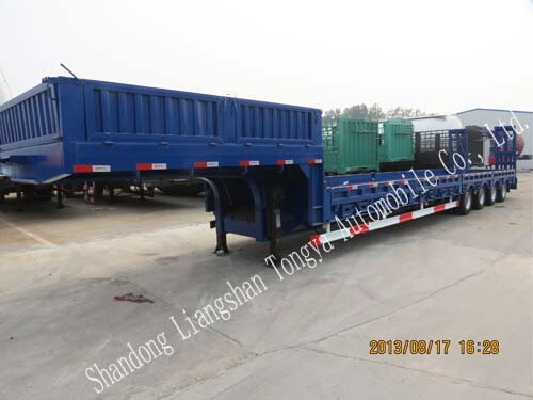

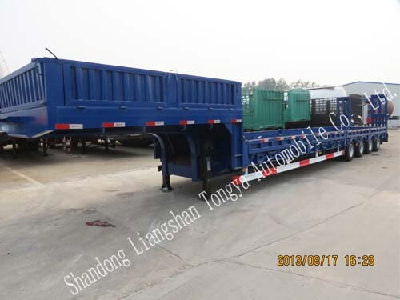

Products: China high qality 3 axles 60ton enclosed gooseneck trailer Manufacturer Name Shandong Liangshan Tongya Automobile Co.,Ltd Type Low bed semi trailer Shipping Terms By bulk cargo carrier because its huge size Delivery time We are the manufacturer,10 workdays for one unit trailer, 50 units per month. Weight: Tare Weight About 12000KG Loading Capacity 60 T Axle Weight Load 13T Specification: Axle number Four Axle specs. FUWA Brand Suspension Common mechanical suspension(American type) Wheel 8.25R20 Dimensions 17500*2500(can be extended to 3000mm)*2950mm ( the length can be choose freely, we can design the size according to your special requirements ) Support legs JOST C200T(Special for export) King pin JOST 2.0'' or 3.5''(Special for export) Rim 6.5-20 Tire: Number of Tire 17 pieces(including one spare tire) Spare Tire Carriers 1 pieces Frame: (specs. and materials) The material of Q345 steel,The height of the beam is500mm,upper plate is 25mm, down plate is25mm, middle plate is 12mm.Side beam is 25# Channel Steel. Platform plate 5mm Diamond Plate Rear Steel Ladder Two pieces Brake: Emergency Brake Valve WABCO (Special for export) Brake Chamber Six double and two single chamber ABS system without Electrical: Voltage 24V Receptacle 7 ways(7 wire harness) Light color: LED light Side marker lamp Orange Rear lamp Red Turn signal lamp Orange Miscellaneous: Painting According to the requirement of the buyer Marking According to the requirement of the buyer Side Guard According to the requirement of the buyer Tools box One piece ,equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar
(LxWxH)
Main beam
- Place of Origin: SHANDONG, CHINA
- Brand Name: TONGYA AUTO
- Model Number: CSTY9380TDP
