- Place of Origin: SHANDONG, CHINA
- Brand Name: TONGYA AUTO
- Model Number: fuel truck for sale

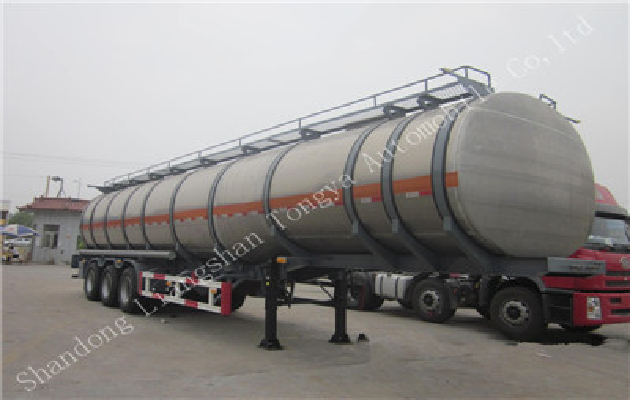

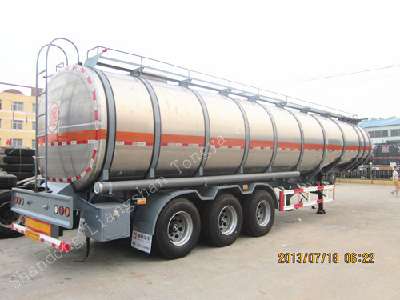

Products： fuel truck for sale Main Dimensions Tank Body Shape Optional ( Round or Square) Dimension 12000mm*2490mm*3990mm( Exact size depends on the final design) Tare weight About 8000KGS-12800KGS Total Volume（m3） 25m3-60 m3 Tanker Body Material 5mm or6mm/ Q235 carbon steel End Plate 5mm or6mm/Q235 carbon steel Manhole Cover Carbon steel or Aluminum alloy API manhole cover, ∮500mm Bottom Valve Aluminum API Pneumatic Bottom Valve Discharging Valve Diameter is 3 or 4 inch Compartments Optional Discharging Pipe 4” rubber hose, 2 pcs, 6m/each Cat Walk With (Common model or special design) Chassis Main Beams Welding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material Axle 2 or 3 axles, BPW/FUWA/HUAJING brand Landing Gear JOST (C200T）or CHINA BRAND 28T King Pin JOST 2.00 or 3.5 inch bolt-in king pin Suspension Mechanical suspension/Germany orAmericatype /air suspension Leaf Spring 90(W)mm*13(Thickness)mm*10 Layer or100mm*12mm*12 /without Pneumatic Braking System WABCO RE 6 relay valve; Spring brake chamber（TKL brand）; 2 pieces of45Lair tanks. Rim 9.00-22.5/8.00-20/8.5-20 ChinaBrand Tire /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional ABS Optional Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint Accessories One standard tool box Shipping Terms By Bulk Cargo ,RORO or 40HQ Containers
- Place of Origin: SHANDONG, CHINA
- Brand Name: TONGYA AUTO
- Model Number: fuel truck for sale
